CABINET DOORS & DRAWER FRONTS
Give your kitchen a new look without the cost of replacing all of your existing cabinets with NEW solid wood doors and drawer fronts. Available in unfinished, natural wood and stained clear coat finish, along with painted finishes in a wide variety of wood types
Ohio Amish Cabinet offers 3/4" solid wood handcrafted "custom made to your size" cabinet doors and drawer frontsAll of our door styles are also available in a more economical paint grade door featuring a 3/4" thick Poplar or Maple frame with 3/4" High Density MDF inset panels
All Doors and Drawer Fronts are built to last a lifetime with the following features
SOLID WOOD DOORS
• Custom built to your size specifications to the nearest 1/8" Minimum door width
• 3/4" thick solid wood construction throughout
• 5 piece mortise and tenon and doweled construction
• 2-1/4" Standard stile and rail width, upon request, they can be made a different size if needed
• Hinge Boring & Hinges are Available
• Available in unfinished, natural wood and stained clear coat finish,along with painted finishes

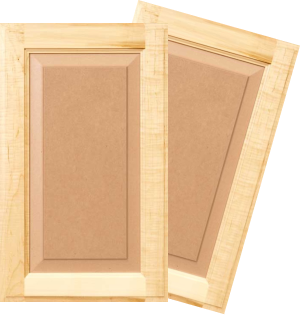

PAINT GRADE SOLID WOOD DOOR FRAMES WITH HIGH DENSITY MDF PANELS
• Custom built to your size specifications to the nearest 1/8" Minimum door width
• 5 piece mortise and tenon and doweled construction
• 2-1/4" Standard stile and rail width, upon request, they can be made a different size if needed
• Hinge Boring & Hinges are Available
• Available in unfished and painted finishes only
SOLID WOOD DRAWER FRONTS
• Custom built to your size specifications to the nearest 1/8" Minimun Drawer Front Height
• 3/4" thick solid wood construction throughout
• 5 piece mortise and tenon and doweled construction
• 2-1/4" Standard stile and rail width, upon request, they can be made a different size if needed
• Available in unfinished, natural wood and stained clear coat finish,along with painted finishes
NOTE: Due to the screw holding strength that is need when installed, we only offer Drawer fronts made from solid wood.we do not make or recommend MDF panel paint grade drawer fronts

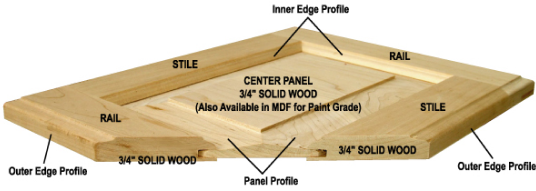

GENERAL DOOR & DRAWER FRONT CONSTRUCTION AND TERMINOLIGY
EDGE PROFILES - AVAILABLE FOR ALL DOORS & FRONTS
INNER EDGE PROFILE (RAILS & STILES)
IE1
Rounded
IE2
Ogee
IE3
Beveled
IE4
Shaker Only
RAISED PANEL PROFILE
RP1
Ogee
RP2
Straight
RP3
Cove
RP4
Ogee W/Bead
OUTER EDGE PROFILE (RAILS & STILES)
OE1
Rounded Slant
OE2
Rounded Straight
OE3
Quarter Round
OE4
Shaker Only
CABINET DOOR AND DRAWER FRONT STYLES
FLAT PANEL DOORS
FPS - SQUARE TOP
FPC -CATHEDRAL ARCH
FPCD - DOUBLE CATHEDRAL ARCH
FPA - ARCH TOP
FPAD - DOUBLE ARCH
FPB - SQUARE BEADED PANEL

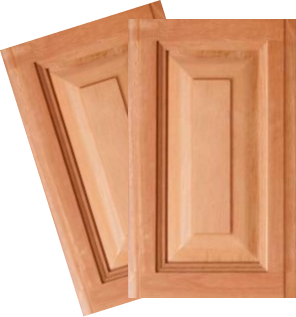

RAISED PANEL DOORS
RPS - SQUARE TOP
RPC -CATHEDRAL ARCH
RPCD - DOUBLE CATHEDRAL ARCH
RPA - ARCH TOP
RPAD - DOUBLE ARCH
SHAKER DOORS
SSS - SPLIT SHAKER SIDE BY SIDE
SBP - SHAKER BEADED PANEL
SST - SHAKER SQUARE
DRAWER FRONT STYLES
DFF - FLAT PANEL
DFR - RAISED PANEL
DFSH - SHAKER
DFS - SLAB PROFILE EDGE
